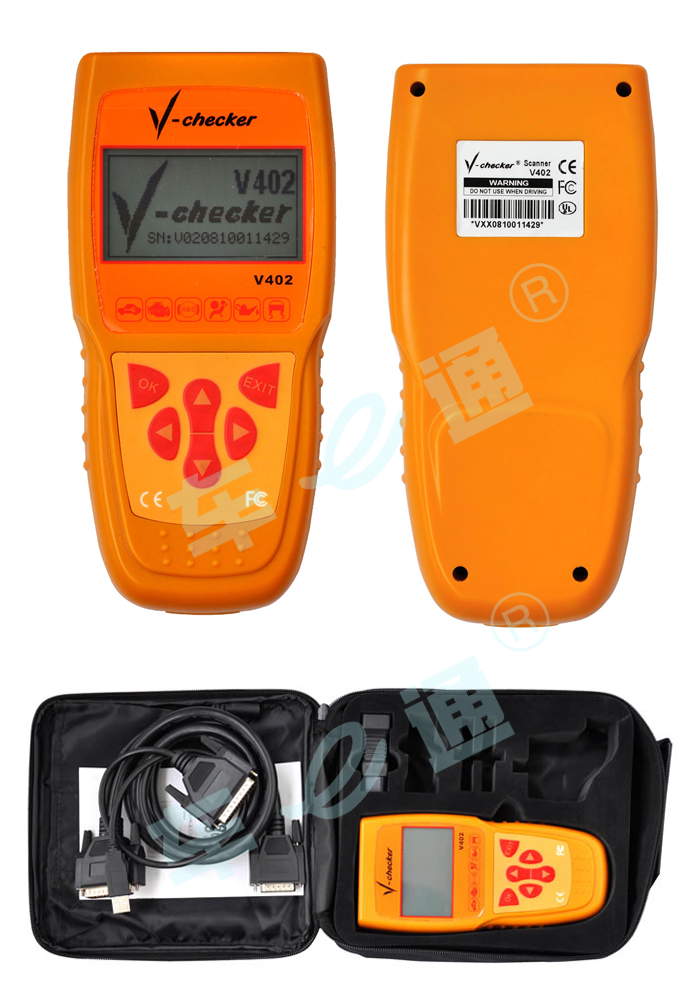

V402 is a high-quality and inexpensive tool for low-end DIY market. It implements full functions of VAG, providing a
majority of DIY customers with real help and benefits. It can diagnose VAG compliant vehicles including Audi, VW,
Skoda, Seat, OBD compliant.
Install Software:
l OBD
l VAG
l VAG Oil Reset
Supported Vehicle:
l OBD compliant vehicles including all 96 & newer cars, SUVs & light trucks.
l all modes of Audi, VW, Skoda and Seat.
Supported Systems:
[01.Engine], [02.Transmission], [03.Brake], [15.Airbags], [17.Instrument Cluster], [08.AC/Heating], [35.Central Locking],
[46.Central Control], [25.Immobilizer], [56.Radio], [47.Soundsystem], [12.Clutch Electronics], [34.Self level suspension],
[16.Steer Wheel], [44.Steer assistance], [11.Engine 2], [21.Engine 3], [14.Wheel damp], [18.Aux heating], [13.Distanc
Control], [19.CAN Gateway], [26.Elect. roof Control], [29.Left light Control], [39.Right light Control], [37.Navigation], [45.
Interior Monitor], [49.Auto.Light switch], [51.Electric drive], [61.Battery Control], [75.Emergency call], [76.Parking aid],
[09.Cen.Elect.], [22.4WD Electronics], [24.Drive slip control], [36.Driv side seat adjust], [41.Diesel pump], [55.Headlight
rang Control], [65.Tyre pressure monitor], [66.Seat/mirror adjust], [71.Battery charger], [42.Driver Door], [52.Passage
Door], [62.LR-Door], [72.RR-Door], [23.Braker Booster], [43.Braker Booster Assistance], [63.Drives Board Assistance1],
[73 Drives Board Assistance2], [54.Rear spoiler], [05.Access & Permission], [06.Passene.Seat adjust], [07.Display/
Control Unit], [27.Display/ Control Unit Rear], [57.TV-Tuner], [67.Voice control], [77.Telephone], [38.Roof Electronic], [48.
Drives Seat Adjust Rear], [68.Wiper Electronic], [78.Sliding Door], [59.Towing Protection], [69.Trailer Function], [28.
Climate Control Unit], [31.Engine Electronic Conjunction.], [32.Locking Electronic], [53.Parking Brake], [58.Auxiliar Fuel
Tank], [64.Stabilizers], [1C.Vehicle Position Detect], [2D.Voice Amplification], [3D.Special Function], [6E.Roof
Display/Control], [7E.Ind.Unit Inst.Panel], [0D.Sliding Door Left], [7D.Auxiliary Heater], [0F.Radio Tuner-Digital], [1F.Radio
Satellite], [2F.TV Tuner-Digital], [4F.Central Electronic II], etc.
Supported Protocols:
l OBD: ISO15765, ISO14230, ISO9141-2, J1850 VPW and J1850 PWM.
l VAG: KWP1281, KWP2000, CanBus, UDS.
Supported Language:
English, Spanish, French, German, Dutch, Hungarian, Polish, Czech, Danish, Portugal, Russian, Finnish, etc.
OBD Functions:
l Read fault code (pending or permanent).
l Clear fault code.
l Read dynamic data streams.
l Query freeze frame.
l MIL indication.
l Readiness status testing.
l Oxygen sensor detection testing.
l On-board monitoring test for specific monitored systems.
l Read control of on-board systems or components.
l Read vehicle information.
VAG Functions:
l ECU Information
l Read Fault Codes
l Clear Fault Codes
l Measuring Blocks
l Basic Settings
l Adaptation
l Single Reading
l Output Tests
l Code Module
l Login
l Chassis Num adjust
l End output
l Readiness
Package characteristics | |
Dimensions(W x H x D) | 205mm × 185mm × 80mm |
Weight | 0.80kg |
Electrical characteriatics | |
Working voltage | 8-20VDC |
Working Current | 70mA |
Working power | 0.9W |
Operation Temperature | -40℃ - 85℃ |
User manual | Chinese | |||||||
English | ||||||||
USB driver | USB_Driver.exe | |||||||
Update software | USB FlashToolMini.rar | |||||||
Font library | SYSTEM V40X V402.SYS | |||||||
application list | VAG application list | |||||||
Software | VAG | Application list | English | Simplified Chinese | Hungarian | Spanish | Polish | Portuguese |
Germany | Russian | Czechish | Denish | Finnish | Turkish | |||
VAG Dashboard Reset | English | Spanish | ||||||
OBD-II | Application list | English | Germany | Hungarian | Spanish | Polish | Czechish | |
Simplified Chinese | Finnish | Russian | Turkish |
